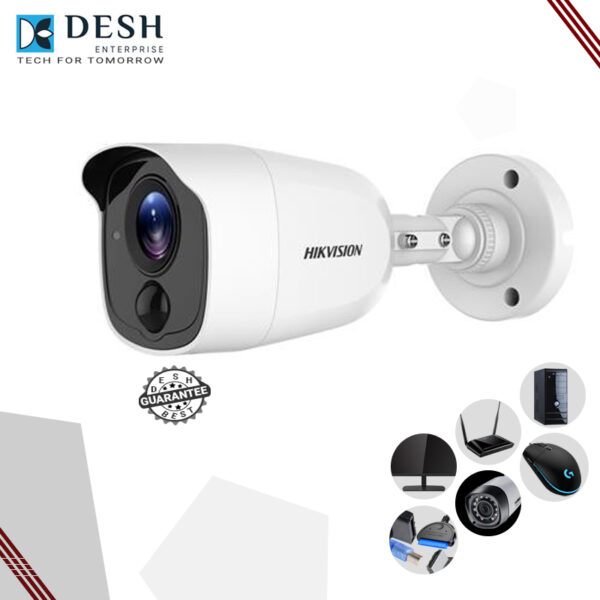

2 MP PIR Fixed Mini Bullet Camera
৳ 2,800.00
Short Features
2 MP PIR bullet camera
PIR detection and strobe light alarm to warn off intruders in real time
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
- Specification
- Description
- Reviews (0)
Specification
2 MP PIR Fixed Mini Bullet Camer
Camera
- Image Sensor2.0 megapixel progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV103° (2.8 mm), 82.2° (3.6 mm)
- Lens MountM12
- Image SettingsBrightness, Contrast, Sharpness, Saturation, DNR, Mirror
- Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Image EnhancementBLC
- White BalanceAuto/Manual
- White LightAuto/Off
- AGCLow/middle/high
Supplement Detection(PIR)
- PIR RangeAngle: 110°, Range:11 m
- Interface
- Video OutputTVI only
- AlarmYes
General
- MaterialMetal
- Dimension68 mm × 70 mm × 179.8 mm ( 2.68″ × 2.76″ × 7.08″ )
- Approx. 345 g (0.76 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish, Chinese
- Power Supply12 VDC ± 25%
- ConsumptionMax. 4.5 W
- IR RangeUp to 20 m
Approval
- Protection1P67
Description
Description
2 MP PIR Fixed Mini Bullet Camera
Brand – Hikvision, Model – Hikvision DS-2CE11D0T-PIRL, Usage – Indoor & Outdoor, Type – Bullet CC Camera, Form-Factor – Mini Bullet, Camera Type – Fixed, Field of View – 82.2 Degree – 103 Degree, Mega Pixel – 2.0MP, Resolution – 1080P, Max. Camera Resolution – 1920 x 1080, Signal System – PAL/NTSC, Shutter Time – 1/25s to 1/50,000s (PAL), 1/30s to 1/50,000s (NTSC), Lens – 2.8 mm, 3.6 mm fixed focal lens, Lens Mount – M12, Lens Adjustment Range – Pan: 0 degree – 360 degree, Tilt: 0 degree – 180 degree, Rotation: 0 degree – 360 degree, Sensor Type – 2MP progressive scan CMOS, Day & Night – IR Cut Filter, Night Vision – Yes, AGC – Low/middle/high, Video Output – 1 HD analog output, Function – Brightness, Contrast, Sharpness, Saturation, DNR, Mirror, Synchronization – Internal Synchronization, Visual Alarm – Yes, PIR Range – 110degree (Angle), 11m (Range), IR Range – 20 Meter, Protocol – HIKVISION-C (TVI output), Communication – Up the coax, Ingress Protection – IP67, Body Color – White, Power Supply – 12 VDC+-25%, Body Material – Metal, Dimension – 68 x 70 x 179.8mm, Weight (Kg) – 345gm, Feature – 2 MP high performance CMOS, 1920 ?? 1080 resolution, 2.8 mm, 3.6 mm fixed focal lens, PIR detection, visual alarm, EXIR 2.0, smart IR, up to 20 m IR distance, IP67, Up the coax (HIKVISION-C), Others – Day& Night: IR cut filter, Horizontal Field of View: 103.5degree (2.8 mm), 80.3degree (3.6 mm), D/N Mode: Auto/Color/BW (Black and White), Auto White Balance: ATW/MANUAL, White Light: Alarm/Off, Day/Night Mode: Auto/Color/BW (Black and White), White Balance: Auto/Manual, Backlight Compensation: Yes, Language: English, Chinese, Operating Condition: -40 degree C to 60 degree C, humidity: 90% or less (non-condensation), Part No – DS-2CE11D0T-PIRL, Recommended Accessories (Not Included) – 1. DVR, 2. Power adapter: 121.761.07 K2 Power adapter For CC camera (White), 3. Coaxial Cable: 121.130.05 Value Top RG59 CCTV coaxial cable with 2 power wire Black (1 Meter), 4. BNC Connector: 121.761.03 K2 BNC Connector for CC Camera, 5. Harddisk: 04.046.13 Toshiba 1TB 3.5 Inch SATA 7200RPM Desktop HDD #DT01ACA100/HDWD110UZSVA, 6. Monitor: 08.020.39 HP V194 18.5 Inch LED Monitor (V5E94AA),
Reviews
There are no reviews yet.
