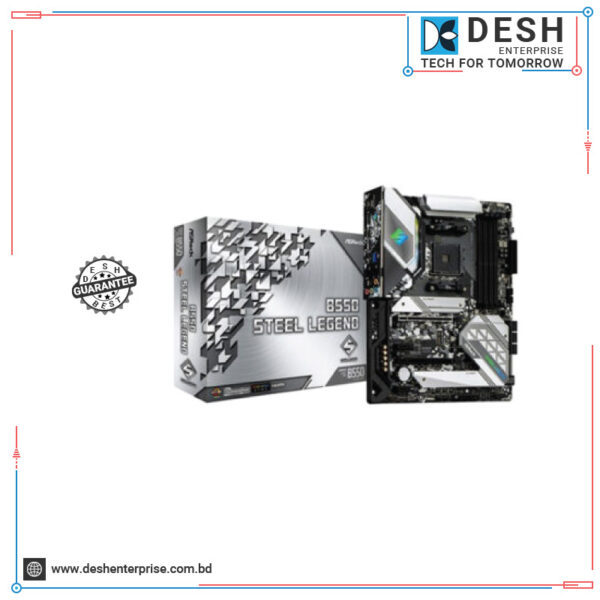

ASRock B550 Steel Legend DDR4 AMD AM4 ATX Motherboard
৳ 19,000.00
Short Features
Model – Asrock B550 Steel Legend
CPU Sockets – AM4
Chipset – AMD B550
Memory Channel – Dual Channel
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
ASRock B550 Steel Legend DDR4 AMD AM4 ATX Motherboard
| SUPPORTED CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series, and 5000 Series Desktop Processors – Digi Power design – 14 Power Phase design |
|---|---|
| CHIPSET | AMD B550 |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
| FORM FACTOR | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB |
| PCI | AMD Ryzen series CPUs (Matisse) 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Renoir) 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) 2 x PCI Express 3.0 x1 Slots |
| M.2 SOCKET | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/ 2242/ 2260/ 2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with Matisse) or Gen3x 4 (32 Gb/s) (with Renoir) 1 x M.2 Socket (M2_2), supports M Key type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| TYPE | DDR4 |
| SLOTS | 4 x DIMM Slots |
| SUPPORTED MEMORY | AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory Dual-Channel DDR4 Memory Technology Supports Extreme Memory Profile (XMP) memory modules |
| MAXIMUM MEMORY | 128GB |
| GRAPHICS | – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB. – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports – Supports Microsoft PlayReady – AMD CrossFireX -Supports AMD Quad CrossFireX and CrossFireX |
| MAX SHARED MEMORY | supports up to 16GB |
| HDMI | 1 x HDMI Port (HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz) |
| DISPLAY PORT (S) | 1 x DisplayPort 1.4 (DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz) |
| USB (S) | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) |
| LAN PORT (S) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User-Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| SUPPORTED STORAGE | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI, and Hot Plug – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/ 2242/ 2260/ 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir) – 1 x M.2 Socket (M2_2), supports M Key type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) |
| AUDIO | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Gold Audio Jacks – 15μ Gold Audio Connector – Nahimic Audio – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| INTERNAL I/O PORTS | – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 4 x USB 2.0 Ports (Supports ESD Protection)* – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) – 1 x Dr. Debug with LED |
| TPM (TRUSTED PLATFORM MODULE ) | – 1 x SPI TPM Header |
| WARRANTY | 03 years warranty |
Description
Description
ASRock B550 Steel Legend DDR4 AMD AM4 ATX Motherboard
Brand – ASRock, Model – ASRock B550 Steel Legend, Chipset Brand – AMD, Chipset – AMD B550, CPU Sockets – AM4, Supported CPU – Ryzen 3000, 4000 G-Series and 5000 Series Processors, Memory Type – DDR4, Memory MHz – AMD Ryzen series CPUs (Matisse): 4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133, Renoir: 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133MHz, Memory Channel – Dual Channel, Memory Slot – 4, Memory Max. – 128GB, Graphics – AMD Radeon Vega Graphics, Multi-GPU Support – AMD Quad CrossFireX and CrossFireX, PCI Express Slot – 2 x PCI Express x16 Slots, 2 x PCI Express 3.0 x1 Slots, Storage Interface – 6.0Gb/s, M.2 Slot – 2 x M.2 (1 x Hyper M.2, type 2280 M.2 PCI Express Gen4x4), (1 x M.2, type 2280 M.2 SATA3 and M.2 PCI Express Gen3 x2)), LAN Chipset – Dragon RTL8125BG, LAN Speed (Mbps) – 10/100/1000/2500Mb/s, Audio Chipset – Realtek ALC1220, Audio Channel – 7.1 Channel, USB Port – 6 x USB 2.0, 3 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen2 Type-C, HDMI Port – 1, DisplayPort (DP) – 1, SATA Port – 6 x SATA, DirectX Support – 12, BIOS Type – 256 Mb flash, BIOS Model – AMI UEFI Legal BIOS, BIOS Version – ACPI 5.1 compliance, FireWire – No, CrossFire Support – Yes, Sli Support – No, RaidSupport – 0,1,10, Thunderbolt – No, TPM Port – 1, COM Port – No, RGB Support – Yes, RGB Connector – 2 x RGB LED Headers, Form Factor – ATX, Supported Operating System – Windows 10, Special Features – XXL Aluminum Alloy Heatsink, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Steel Slot Gen4, ASRock Live Update & APP Shop, Others – 2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x Optical SPDIF Out Port, 1 x Power LED and Speaker Header, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 4 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, Warranty – 3 Year
