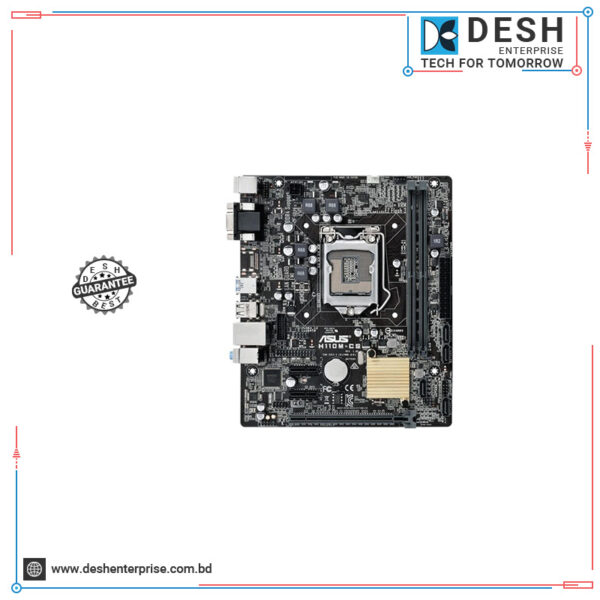

Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
৳ 6,100.00
Short Features
Model: H110M-CS
CPU: 7th/6th Generation Intel Processors
Chipset: Intel® H110
2 x DDR4 DIMM
3 x PCI Express slot
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
| SUPPORTED CPU | Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core™ i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
|---|---|
| CHIPSET | Intel H110 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen Function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| FORM FACTOR | uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| TYPE | DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| SLOTS | 2 x DIMM |
| SUPPORTED MEMORY | Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| MAXIMUM MEMORY | The maximum memory frequency supported varies by processor |
| GRAPHICS | Graphics: VGA output support: RGB port – Supports RGB with max. resolution 1920 x 1200 60 Hz Max Shared Memory: 1024 MB |
| WARRANTY | 03 Years |
| USB (S) | Intel H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| LAN PORT (S) | Realtek RTL8111H |
| SUPPORTED STORAGE | Intel H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel Rapid Storage Technology supports*2 |
| AUDIO | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *3 – Supports: Jack-detection, Front Panel Jack-retasking Audio Feature : – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity |
| INTERNAL I/O PORTS | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header |
Description
Description
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
Asus H110M-CS 7th & 6th gen supreme motherboard compatible with Intel (Socket 1151) i3, i5 & i7 processor. This ultrafast dual channel max DDR4 supported maximum 32GB memory and it has the capability of fast SATA supported storage and Advanced hardware safeguards for all-round protection. If we consider the graphics of this LED lighting board, it will support Intel HD graphics having the maximum resolution of 1920 x 1200 @ 60 Hz for VGA output. This Media-acclaimed UEFI BIOS with EZ Flash 3 board has Fan Xpert advanced fan controls for ultimate cooling and silent performance and Easy PC DIY with safe motherboard-mounting.
