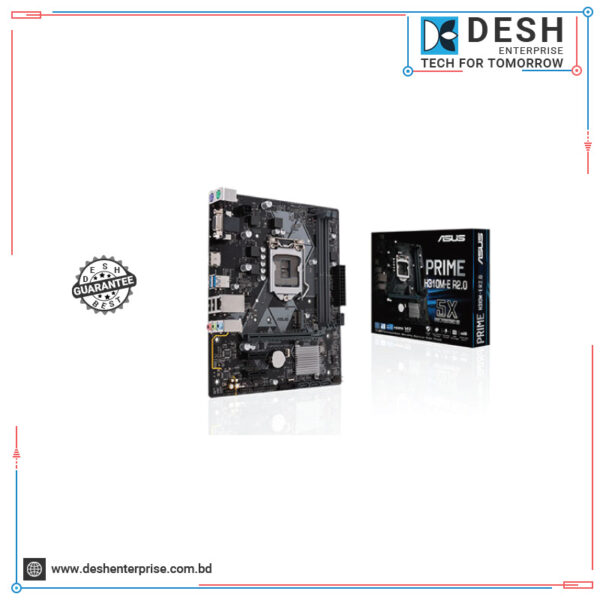

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard
৳ 7,000.00
Short Features
Model: PRIME H310M-E
CPU: 8th Generation Intel Processors
Chipset: Intel H310
2 x DDR4 DIMM
3 x PCI Express slot
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard
| SUPPORTED CPU | Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
|---|---|
| CHIPSET | Intel H310 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| FORM FACTOR | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| EXPANSION SLOTS | PCI: 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 M.2 Socket: 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCI-E mode) |
| MEMORY | Type: 2 x DIMM Slots: DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supported Memory: DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. Maximum Memory: 32GB |
| GRAPHICS | Graphics: Multi-VGA output support : HDMI/D-Sub ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 25600 x 1600 60 Hz – Supports D-sub with max. resolution 1920 x 1200 60 Hz Max Shared Memory: 1024 MB |
| HDMI | 1 x HDMI |
| D-SUB (S) | 1 X D-sub |
| USB (S) | Intel H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| LAN PORT (S) | Realtek RTL8111H, 1 x Gigabit LAN |
| SUPPORTED STORAGE | Intel H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray, |
| AUDIO | Realtek ALC887 8-Channel High Definition Audio CODEC – Supports: Jack-detection, Front Panel Jack-retasking Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in the front panel to support 8-channel audio output. |
| INTERNAL I/O PORTS | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| WARRANTY | 03 years |
Description
Description
Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard
Asus PRIME H310M-E mATX gaming motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This LED lighting enabled board also supports dual channel DDR4 maximum 32GB memory and it has the capability of Ultrafast 32Gbps M.2 SATA 6Gbps and USB 3.1 Gen 1 interface. Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having the maximum resolution of 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz for HDMI 1.4b & 1920 x 1200 @ 60 Hz for D-sub slots. This ASUS Fan Xpert motherboard has Multi-VGA output and Asus Optimem for stable performance.
Asus mainboard would be a perfect choice for PC built and buying at best price from Star Tech. Shop online your desired mainboard and have the delivery at your destination.
