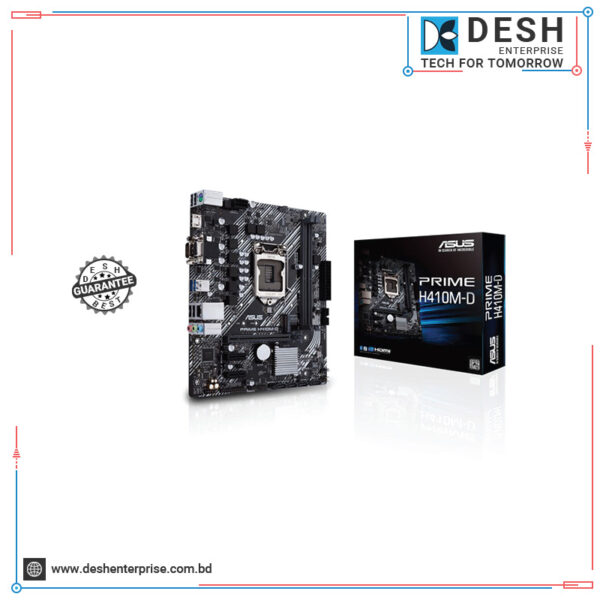

Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard
৳ 8,500.00
Short Features
Model: Prime H410M-D
Ready for 10th Gen Intel Core processors
5X Protection III
4 x SATA 6Gb/s port(s)
M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU |
|---|---|
| CHIPSET | Intel H410 |
| MEMORY | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| GRAPHICS | Integrated Graphics Processor * 1 x D-Sub 1 x HDMI 1.4b |
| EXPANSION SLOTS | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 2 x PCIe 3.0 x1 |
| STORAGE | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 4 x SATA 6Gb/s port(s) |
| AUDIO | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *2 – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors |
| USB PORTS | Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
| BACK I/O PORTS | 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
| INTERNAL I/O PORTS | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x LPT header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| FORM FACTOR | mATX Form Factor 8.9 inch x 7.9 inch ( 22.6 cm x 20.1 cm ) |
| WARRANTY | 3 years |
Description
Description
Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard
Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard comes with Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel 14 nm CPU. It features Dual Channel Memory Architecture and supports 2 x DIMM, Max. 64GB, DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory. Total supports 4x SATA 6Gb/s ports. It also has M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A for Ultrafast connectivity.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
Prime H410 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H410 Series features comprehensive cooling controls, configurable via ASUS Fan Xpert software or the UEFI BIOS.
Build on a Solid Foundation
Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
ASUS OptiMem benefits
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
