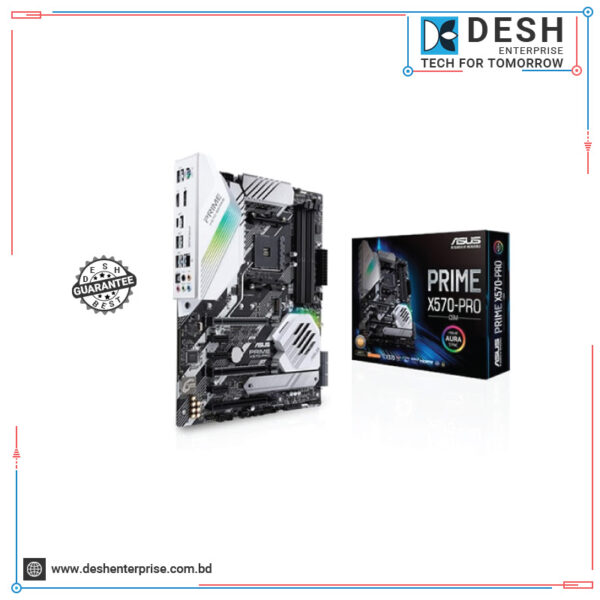

Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard

৳ 25,500.00

Short Features

Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors

5-Way Optimization

Enhanced Power Solution

Industry-leading cooling options

View cart



Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard

Supported CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset AMD X570
Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz – Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Slots 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1
Supported Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
LAN Intel® I211-AT ASUS LAN Guard
Audio Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Front panel audio connector (AAFP) – Supports up to 32-Bit/192kHz playback * Audio Feature : – Optical S/PDIF out port(s) at back panel – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – EMI protection cover to prevent electrical noise to affect the amplifier quality * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Port 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
Internal I/O Ports 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x Water Pump header (4-pin) 1 x T_Sensor Connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
External I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Warranty 03 Years

Description

Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard

AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen processors. ASUS Corporate Stable Model (CSM): A commercial program offers up to a 36-month product lifecycle and a 6-month EOL notice for product transitions. ASUS Control Center Express: A centralized server-grade management software for asset management, software deployment, and monitoring, and mobile control. Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes, and durable capacitors for stable power delivery. 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks. Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI. M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability. Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports, and front-panel header
