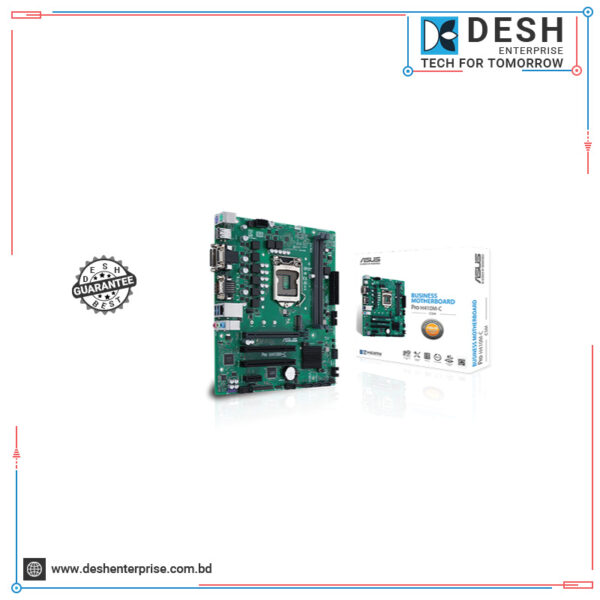

ASUS Pro B460M-C/CSM LGA 1200 Micro-ATX Motherboard
৳ 11,000.00
Short Features
Micro-ATX Form Factor
Intel B460 Chipset
Socket LGA 1200
4 x Dual-Channel DDR4-2933
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
ASUS Pro B460M-C/CSM LGA 1200 Micro-ATX Motherboard
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
|---|---|
| CHIPSET | Intel® B460 |
| MEMORY | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem |
| GRAPHIC | Integrated Graphics Processor 2 x DisplayPort 1.4 ** 1 x D-Sub 1 x HDMI 1.4b |
| EXPANSION SLOTS | 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® B460 Chipset 2 x PCIe 3.0/2.0 x1 1 x PCI |
| STORAGE | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*2 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard |
| USB PORTS | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| INTERNAL I/O PORTS | 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header (with Amp IC) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x SPI TPM header 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x LPC Debug header |
| FORM FACTOR | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Description
Description
ASUS Pro B460M-C/CSM LGA 1200 Micro-ATX Motherboard
B460M-C/CSM LGA 1200 Micro-ATX Motherboard is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features a micro-ATX form factor, allowing for use in smaller cases. Other integrated features include Intel I219V Gigabit Ethernet and Realtek ALC887 7.1-channel HD audio.
Intel B460 Chipset
This motherboard features the Intel B460 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core, Pentium Gold, and Celeron processors.
ASUS OptiMem Technology
ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. This allows for improved memory stability and compatibility, lower memory latencies at equivalent voltages, and improved memory frequency margin.
Storage
The dual M.2 slots support data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.
ASUS Self-Recovering BIOS
With ASUS self-recovering BIOS, this motherboard ensures safe BIOS updates, reduces maintenance frequency and costs, requires no additional software, and provides automatic update failure detection and recovery.
Trusted Platform Module (TPM)
Hardware-based security offers data protection, enhances network security, protects digital identities, and ensures platform integrity.
Certified NIST SP 800-147
This motherboard is certified by the national computer security standards.
