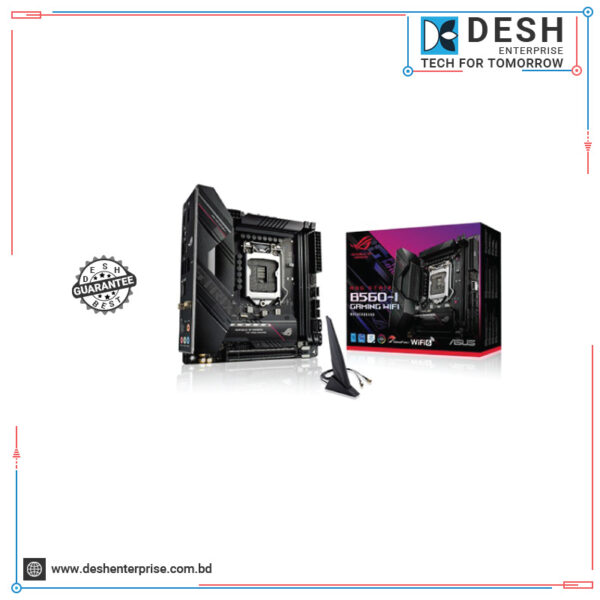

ASUS ROG STRIX B560-I Gaming Wi-Fi Intel 10th and 11th Gen Mini ITX Motherboard
৳ 18,100.00
Short Features
Model – Asus ROG STRIX B560-I GAMING (Wi-Fi 6)
Chipset Brand – Intel
Chipset – Intel B560
CPU Sockets – LGA1200
Generation – 10th/11th Gen
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
ASUS ROG STRIX B560-I Gaming Wi-Fi Intel 10th and 11th Gen Mini ITX Motherboard
| BASIC INFORMATION | Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) Chipset: Intel B560 Chipset BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Form Factor: Mini ITX: 17cm x 17cm |
|---|---|
| EXPANSION SLOTS | PCI: Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) – Intel 11th processors support PCIe 4.0 x16 – Intel 10th processors support PCIe 3.0 x16 M.2 Socket: Supports 2 x M.2 slots Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs |
| MEMORY | Type: DDR4 Slots: 2x DDR4 memory slots Supported Memory: 5333(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively. Maximum Memory: Support up to 64GB |
| GRAPHICS | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
| CONNECTOR & PORTS | HDMI: 1 x HDMI 1.4 / 2.0 Display Port (s): 1 x DisplayPort 1.4 USB (s): Rear USB: Total 8 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 6 x USB 2.0 port(s) (5 x Type-A, 1 x audio USB Type-C) Front USB: Total 5 ports 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports LAN Port (s): 1 x Realtek 2.5Gb Ethernet |
| WIRELESS COMMUNICATION MODULE | Intel Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
| SUPPORTED STORAGE | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 – Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| AUDIO | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear audio USB Type-C® port – Premium Japanese audio capacitors |
| INTERNAL I/O PORTS | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| SPECIAL FEATURES | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-LED CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-DIMM – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – ProCool – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s) |
| WARRANTY | 03 Years |
Description
Description
ASUS ROG STRIX B560-I Gaming Wi-Fi Intel 10th and 11th Gen Mini ITX Motherboard
Brand – Asus, Model – Asus ROG STRIX B560-I GAMING (Wi-Fi 6), Chipset Brand – Intel, Chipset – Intel B560, CPU Sockets – LGA1200, Supported CPU – 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Generation – 10th/11th Gen, Memory Type – DDR4, Memory MHz – 5333(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Memory Channel – Dual, Storage Interface – 6Gb/s, M.2 Slot – 2 x M.2 slots (1 x M.2, type 2242/2260/2280 PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)), LAN Chipset – Realtek 2.5Gb Ethernet, LAN Speed (Mbps) – 10/100/1000/2500 Mb/s, Audio Chipset – ROG SupremeFX CODEC S1220A, Audio Channel – 7.1-Channel, Wi-Fi – Yes, Wi-Fi Technology – Wi-Fi 6 802.11 a, b, g, n, ac, ax (2×2), Bluetooth – Bluetooth 5.0, USB Port – 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 6 x USB 2.0 Type-A, 1 x USB 2.0 Type-C, HDMI Port – 1, DisplayPort (DP) – 1, SATA Port – 4, BIOS Type – 128 Mb Flash, BIOS Model – UEFI AMI BIOS, RGB Support – Yes, RGB Sync – Aura Sync, RGB Connector – 1 x AURA RGB header, Form Factor – Mini ITX, Supported Operating System – Windows 10, Special Features – Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron processors. Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard. Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort1.4 output, two M.2 slots, and USB 3.2 Gen 2×2 USB Type-C. DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield and Q-LED. Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable header. Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III, Others – 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 5 x Audio jacks, Warranty – 3 Year Replacement,
