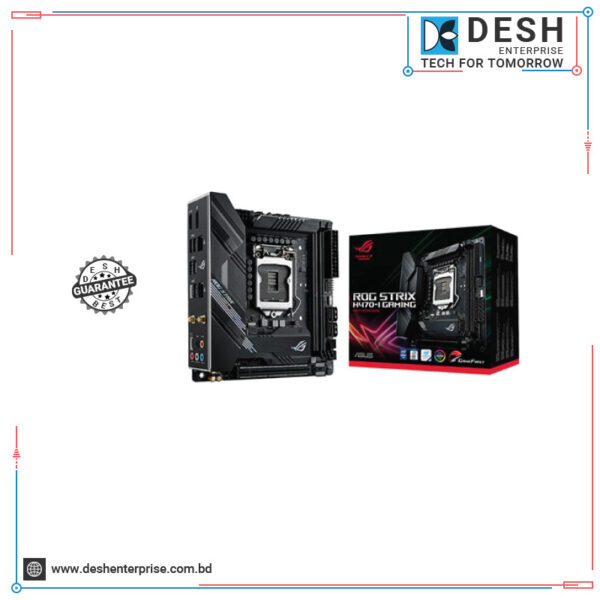

ASUS ROG STRIX H470-I GAMING LGA 1200 Mini-ITX Motherboard
৳ 18,000.00
Short Features
Mini-ITX Form Factor
Intel H470 Chipset
Socket LGA 1200
2 x Dual-Channel DDR4-2933
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
ASUS ROG STRIX H470-I GAMING LGA 1200 Mini-ITX Motherboard
| CPU | Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
|---|---|
| CHIPSET | Intel® H470 |
| MEMORY | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively |
| GRAPHIC | 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b |
| EXPANSION SLOTS | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 |
| STORAGE | 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| AUDIO | ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC – Rear audio USB Type-C® port – Premium Japanese audio capacitors – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – Supports up to 32-Bit/192kHz playback |
| USB PORTS | 1 x USB 2.0 port(s)(1 x USB Type-C®) Front USB Port ( Total 4 ) Rear USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 3.2 Gen 2 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
| INTERNAL I/O PORTS | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Aura RGB Strip Headers 2 x M.2 Socket 3 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector |
| OPERATING SYSTEM | Windows® 10 64-bit |
| FORM FACTOR | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
Description
Description
ASUS ROG STRIX H470-I GAMING LGA 1200 Mini-ITX Motherboard
ASUS ROG STRIX H470-I Motherboard is designed around the Intel H470 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has two memory slots supporting up to 64GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are four SATA III ports and two M.2 slots for storage. This motherboard features a mini-ITX form factor, allowing for use in smaller cases. Other integrated features include Intel I219-V Gigabit Ethernet and ASUS ROG SupremeFX 7.1-channel HD audio.
Intel H470 Chipset
This motherboard features the Intel H470 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core, Pentium Gold, and Celeron processors.
ASUS OptiMem Technology
ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. This allows for improved memory stability and compatibility, lower memory latencies at equivalent voltages, and improved memory frequency margin.
Storage
The dual M.2 slots support data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.
