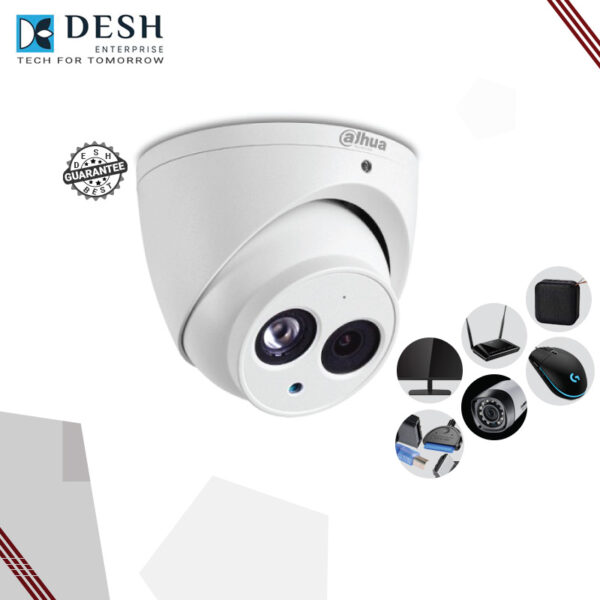

Dahua HAC-HDW1200EMP 2MP HDCVI IR Eyeball Camera without Audio
৳ 2,300.00
Short Features
Model: Dahua HAC-HDW1200EMP
Built-in mic
IP67, DC12V
Max 30fps@1080P
Max. IR length 50m, Smart IR
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
Dahua HAC-HDW1200EMP 2MP HDCVI IR Eyeball Camera without Audio
| General | ||
| Casing | Aluminum | |
| Dimensions | Φ106mm×93.7mm (Φ4.17″×3.69″) | |
| Weight | 0.44 Kg | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
|
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |
| Power Supply | 12V DC ±30% | |
| Power Consumption | Max 4.2W (12V DC, IR on) | |
| Camera | ||
| Image Sensor | 1/2.7″ CMOS | |
| Effective Pixels | 1920(H)×1080(V), 2MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on | |
| S/N Ratio | More than 65dB | |
| IR Distance | Up to 50m (164feet) | |
| IR On/Off Control | Auto / Manual | |
| IR LEDs | 1 | |
| Lens | ||
| Lens Type | Fixed lens / Fixed iris | |
| Mount Type | Board-in | |
| Focal Length | 3.6mm | |
| Max Aperture | F1.85 | |
| Angle of View | H: 87.5° (103°, 54.7°) | |
| Close Focus Distance | 500mm (900mm, 2000mm) 19.69” (35.43″, 78.74”) |
|
| Video | ||
| Resolution | 1080P (1920×1080) | |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
|
| Day/Night | Auto (ICR) / Manual | |
| BLC Mode | BLC / HLC / DWDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D | |
| Interface | ||
| Audio Interface | Built-in Mic | |
| Special Features | ||
| Features | Ingress Protection & Vandal Resistance: IP67 White Balance: Auto / Manual Smart IR: Auto / Manual |
|
Description
Description
Dahua HAC-HDW1200EMP 2MP HDCVI IR Eyeball Camera without Audio
Dahua HAC-HDW1200EMP 2MP HDCVI IR Eyeball Camera without Audio. Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high-quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/ SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions. HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data, and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending a control signal or triggering the alarm. Moreover, HDCVI technology supports PoC for construction flexibility. HDCVI technology guarantees real-time transmission at a long distance without any loss. It supports up to 800m(1080P)/ 1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable. HDCVI technology inherits the born feature of simplicity from the traditional analog surveillance systems, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug-and-play approach enables full HD video surveillance without the hassle of configuring a network.
Reviews
There are no reviews yet.
