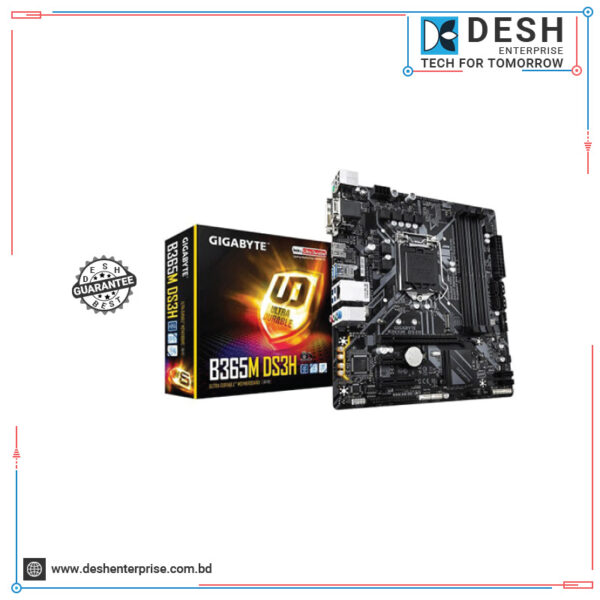

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
৳ 8,600.00
Short Features
Model: Gigabyte B365M DS3H
Supports 9th and 8th Gen Intel Core Processors
Dual Channel DDR4
New Hybrid Digital PWM Design
Ultra-Fast M.2 with PCIe Gen 3X4
- Specification
- Description
- Reviews (0)
Specification
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
| SUPPORTED CPU | 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors |
|---|---|
| CHIPSET | Intel B365 Express Chipset |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| FORM FACTOR | Micro ATX |
| PCI | 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot |
| M.2 SOCKET | 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| MEMORY TYPE | DDR4 |
| SLOTS | 4 |
| SUPPORTED MEMORY | 2666/2400/2133 MHz |
| MAXIMUM MAMORY | 64GB |
| GRAPHICS | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz – The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz – Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time |
| MAX SHARED MEMORY | 1 GB |
| HDMI | Yes ( 1.4 ) |
| USB (S) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN PORT (S) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| SUPPORTED STORAGE | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors – Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| AUDIO | Audio chipset : 2/4/5.1/7.1-channel Audio channel : Realtek ALC887 |
| INTERNAL I/O PORTS | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| WARRANTY | 03 Year |
Description
Description
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H Micro ATX ultra durable motherboard has the compatibility with 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors. This board also supports dual channel DDR4 maximum 64GB memory and dual ultra-fast M.2 with 4xPCIe, DVI-D, HDMI, 6xSATA & Crossfire. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 4096×2160@30 Hz for HDMI & 1920×1200@60 Hz for DVI-D & D-Sub port. This latest motherboard has the facility of USB 3.1 Gen2 Type-C & Type-A. It supports Windows 10 64-bit.
