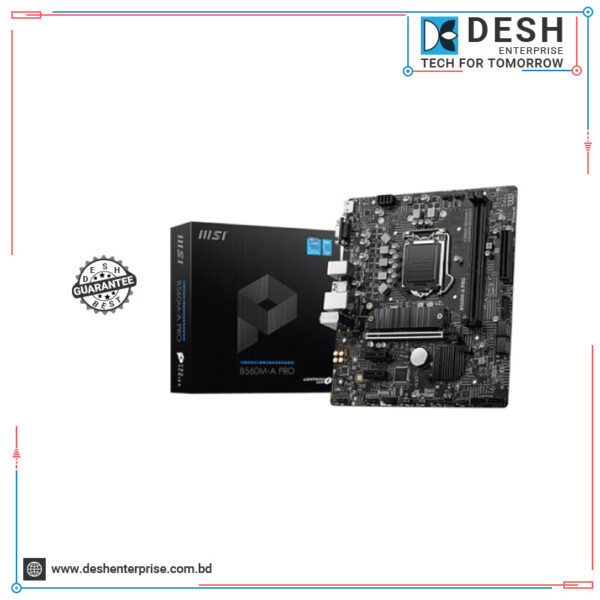

MSI B560M-A PRO Intel 11th Gen mATX Motherboard
৳ 9,000.00
Short Features
Model: MSI B560M-A PRO
Supports 10th and 11th Gen Processors
2.5G LAN & Core Boost
Audio Boost, DDR4 Boost
Lightning Fast Experience
- Specification
- Description
- Reviews (0)
Specification
MSI B560M-A PRO Intel 11th Gen mATX Motherboard
| CPU (MAX SUPPORT) | i9 |
|---|---|
| SOCKET | 1200 |
| CHIPSET | Intel B560 Chipset |
| DDR4 MEMORY | 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| PCI-E GEN | Gen4 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 1 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
| USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | MATX |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| WARRANTY | 3 Years |
Description
Description
MSI B560M-A PRO Intel 11th Gen mATX Motherboard
MSI B560M-A PRO Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The world’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. MSI OC LAB does not merely work hard on extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pinpoint precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
