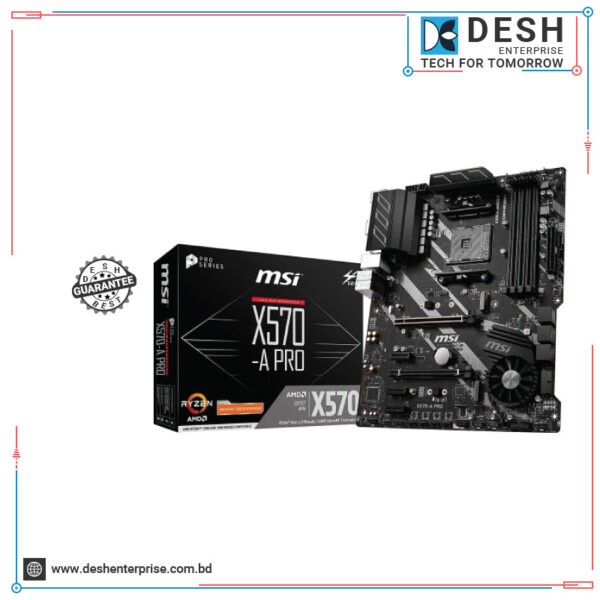

MSI X570-A Pro DDR4 AMD AM4 Socket Motherboard
৳ 15,000.00
Short Features
Model: MSI X570-A
Supports 2nd and 3rd Gen AMD Ryzen
Supports 4 DIMMs
Frozr Heatsink Design
Audio Boost & Multi-GPU
- Specification
- Description
- Reviews (0)
Specification
MSI X570-A Pro DDR4 AMD AM4 Socket Motherboard
| SPECIFICATIONS | ||
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 | |
| Chipset | AMD X570 | |
| BIOS | 1 x 256MB flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language |
|
| Form Factor | ATX | |
| PCI | PCI Express 4.0 x16 : – 1 x PCIe 4.0/3.0 x16 slot (PCIE_1) – 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode – 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode – Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode -1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode) PCI Express x1 : – 3 x PCIe 3.0 x1 slots* |
|
| M.2 Socket | 2 x M.2 slot (Key M): M2_1 slot (from AMD Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices |
|
| Memory Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC |
|
| Maximum Mamory | 128GB | |
| Graphics | Supported only by CPU with integrated graphic: – 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160@24Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors |
|
| Max Shared Memory | Maximum shared memory of 2048MB | |
| HDMI | Yes (1.4 ) | |
| USB (s) | AMD X570 Chipset : – 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor : – 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel – 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN Controller | |
| Supported Storage | 6 x SATA 6Gb/s 2 x M.2 slot (Key M): M2_1 slot (from AMD Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices |
|
| Audio | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs |
|
| Warranty | 03 year warranty | |
Description
Description
MSI X570-A Pro DDR4 AMD AM4 Socket Motherboard
MSI X570-A Pro is a gaming monster. It Supports the 2nd and 3rd Gen AMD Ryzen processors. MSI motherboards have been designed with tons of smart features for convenient setup and usage, such as pin-header keep-out zone, friendly SATA & USB location, and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Cooling is essential for a high-performance PC to sustain intense workloads. X570-A PRO features a heavy-duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it. Every MSI motherboards are certified by strict mechanic that features convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even overclocking, so you confirm and choose any gaming rig you want. High-quality materials and intelligent fan optimization help to cool all necessary components, which is critical to ensuring that the system is stable and always delivering the best performance. Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s.MSI motherboards support a new generation of storage standards that can be connected to a variety of storage devices to make games load faster and take the lead in the game. Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy the breathtaking, gaming-changing sound.
Reviews
There are no reviews yet.
