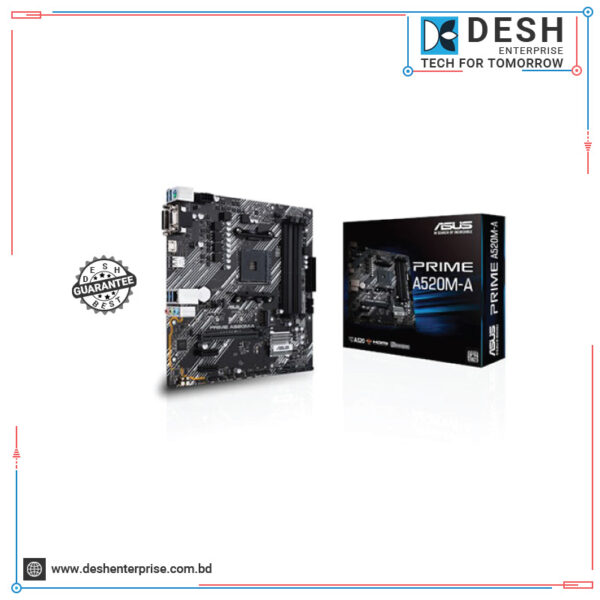

Asus Prime A520M-A Micro ATX AM4 Motherboard
৳ 8,000.00
Short Features
Model: Asus Prime A520M-K
AMD AM4 Socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
5X Protection III
Ultrafast connectivity
Comprehensive cooling
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
Asus Prime A520M-A Micro ATX AM4 Motherboard
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
|---|---|
| CHIPSET | AMD A520 |
| MEMORY | 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| GRAPHIC | 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) |
| EXPANSION SLOTS | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 |
| STORAGE | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
| USB PORTS | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| INTERNAL I/O PORTS | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| OPERATING SYSTEM | Windows 10 64-bit |
| FORM FACTOR | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Description
Description
Asus Prime A520M-A Micro ATX AM4 Motherboard
Boasting a robust power design, ASUS Prime series is expertly engineered with comprehensive cooling solutions and intelligent tuning options. Prime A520M series motherboards offer daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Prime A520M motherboard packs flexible tools to tune every aspect of user’s system, enabling user to tweak performance settings maximizing the productivity. It provides intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Coupled with EPU, it has flexible cooling control system that decreases chassis fan speeds below to the default minimum to keep user’s system whisper-quiet when performing light tasks. And the Digi+ voltage regulator module delivers real time control over voltage droop, automatically switching frequency and power-efficiency settings. Additionally, Prime A520M-K is designed with an array of hybrid fan headers and features comprehensive cooling controls while owning multiple temperature sources and smart protection. It also provides all the fundamentals to boost daily productivity. This supports high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases. Its audio system features audio shielding, separate layer for left and right tracks which offers an immersive sound. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. To mention, SafeSlot Core is the ASUS-exclusive PCIe slot which is available here. The exclusive Prime A520M-K comes with 03 years of warranty.
