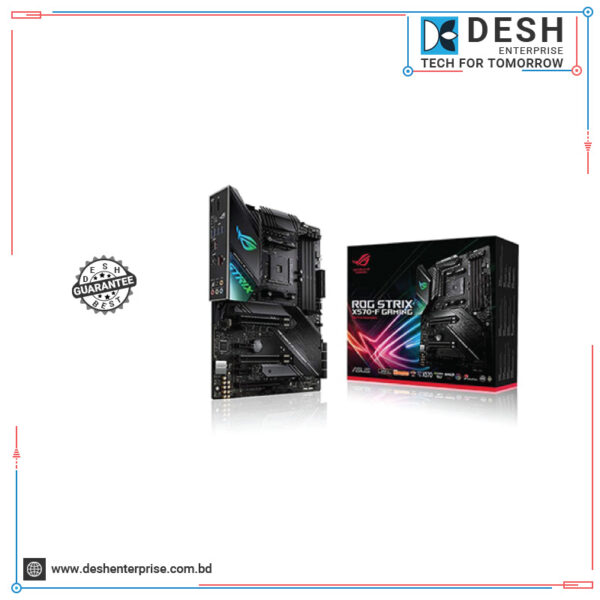

Asus Rog Strix X570-F AMD ATX Gaming Motherboard
৳ 31,500.00
Short Features
Model: Asus Rog Strix X570-F
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset: AMD X570, Memory: 4 x DDR4, Max 128 GB
5-Way Optimization
Optimal Power Solution:14 power stages
- SPECIFICATION
- Description
- Reviews (0)
SPECIFICATION
Asus Rog Strix X570-F AMD ATX Gaming Motherboard
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
|---|---|
| CHIPSET | AMD X570 |
| MEMORY | 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
| GRAPHIC | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz – Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Multi-VGA output support : HDMI/DisplayPort ports |
| MULTI-GPU SUPPORT | 3rd and 2nd Gen AMD Ryzen™ Processors Supports AMD 2-Way CrossFireX™ Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology |
| EXPANSION SLOTS | 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 2 x PCIe 4.0 x16 (x16 or dual x8) AMD X570 chipset 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) |
| STORAGE | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology |
| AUDIO | – Supports up to 32-Bit/192kHz playback *2 SupremeFX8-Channel High Definition Audio CODEC S1220A – Dual OP Amplifiers – Sonic Studio III + Sonic Studio Link – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – SupremeFX Shielding Technology |
| INTERNAL I/O PORTS | 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 1 x PCH_FAN 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x M.2 Fan Header 1 x Node Connector(s) 2 x Aura RGB Strip Header(s) 1 x W_PUMP+ connector 8 x SATA 6Gb/s connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x T_Sensor Connector |
| FORM FACTOR | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| WARRANTY | 03 Years |
Description
Description
Asus Rog Strix X570-F AMD ATX Gaming Motherboard
The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options, and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with onboard RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.
DESIGN & CUSTOMIZATION
The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.
TUNE YOUR RIG YOU WANT
The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning, and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
THE POWER OF AMD
AMD X570 CHIPSET :
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN / 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS PROCESSORS :
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2, and x16 PCI Express 4.0/3.0 lanes for superb performance.
