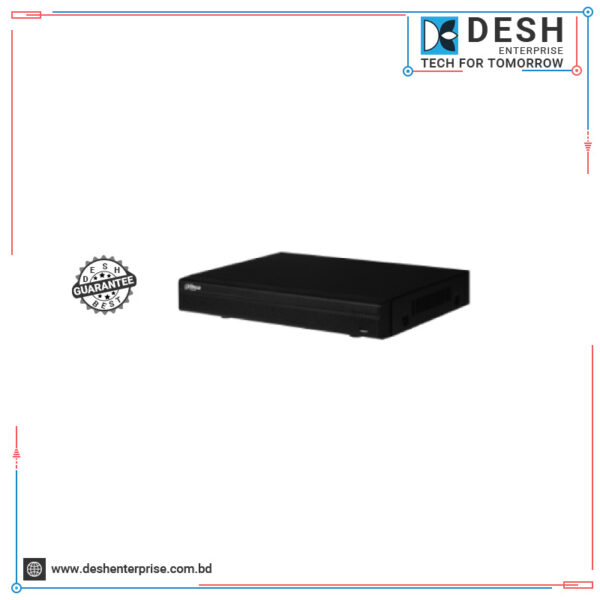

DAHUA NVR4116HS-4KS2 16 Channel Compact 1U Lite Network Video Recorder NVR
৳ 8,200.00
Short Features
Model: NVR4116HS-4KS2
Interface: 1 HDMI,1 VGA
Resolution: 1920×1080
Internal HDD SATA: Up to 6TB
80Mbps bit rate
- specification
- Description
- Reviews (0)
specification
DAHUA NVR4116HS-4KS2 16 Channel Compact 1U Lite Network Video Recorder NVR
| System | ||
| Main Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux | |
| Display | ||
| Interface | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI | |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 | |
| Decoding Capacity | 8 × 1080p@30 fps | |
| Multi-Screen Display | 1, 4, 8, 9, 16 views | |
| Recording | ||
| Compression | Smart H.265/H.265/Smart H.264/H.264/MJPEG | |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 | |
| Bit Rate | 80Mbps | |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording | |
| Playback And Backup | ||
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
|
| Backup Mode | USB storage device | |
| Network | ||
| Ethernet Port | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port | |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register | |
| Storage | ||
| Internal HDD | 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature | |
| Auxiliary Interface | ||
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) | |
| Power | ||
| Power Supply | 12V DC, 2A | |
| Power Consumption | < 10 W (HDD not included, idling) | |
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (+10 °F to +131 °F) | |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) | |
| Construction | ||
| Dimensions | 260 mm × 232.5 mm × 50.3 mm (10.24″ × 9.15″ × 1.98″) (W × L × H) | |
| Net Weight | 0.81 kg (1.79 lb) | |
| Gross Weight | 1.41 kg (3.11 lb) | |
Description
Description
DAHUA NVR4116HS-4KS2 16 Channel Compact 1U Lite Network Video Recorder NVR
DAHUA NVR4116HS-4KS2 is a 16 Channel Compact 1U Lite Network Video Recorder (NVR). It supports 16 CH IP Camera Inputs. It features a max 80Mbps bit rate input. Up to 8MP Resolution for Preview and Playback is supported. H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch. HDMI & VGA Output up to 1080p. > Supports mainstream cameras of ONVIF and RTSP protocols. Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches It features 1 HDD ( Up to 6 TB ). 01 Year Warranty
