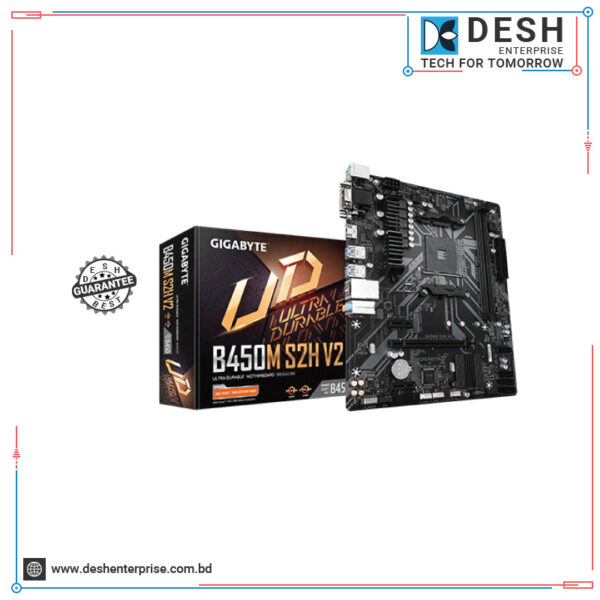

GIGABYTE B450M S2H V2 ULTRA DURABLE AMD MOTHERBOARD
৳ 6,300.00
Short Features
MODEL: B450M S2H V2
Ultra-Fast PCIe Gen3
High-Quality Audio Capacitors
Feature Digital VRM Solution
- Specification
- Description
- Reviews (0)
Specification
GIGABYTE B450M S2H V2 ULTRA DURABLE AMD MOTHERBOARD
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | D-Sub port, supporting a maximum resolution of 1920×1200 at 60 Hz DVI-D port, supporting a maximum resolution of 1920×1200 at 60 Hz The DVI-D port does not support D-Sub connection by adapter. HDMI port, supporting a maximum resolution of 4096×2160 at 60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB |
| Slots | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| Supported Storage | M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| USB Port | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Ports | 24-pin ATX main power connector 8-pin ATX 12V power connector CPU fan header system fan header M.2 Socket 3 connector 4 x SATA 6Gb/s connectors front panel header front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| External I/O Ports | x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| BIOS | 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| HDMI | HDMI port, supporting a maximum resolution of 4096×2160 at 60 Hz Support for 2.0 version and HDCP 2.2. port |
| Warranty | 03 years warranty |
Description
Description
GIGABYTE B450M S2H V2 ULTRA DURABLE AMD MOTHERBOARD
Supports AMD Ryzen 5000 series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs.Feature Digital VRM Solution with Low RDS(on) MOSFETs.HDMI, DVI-D, D-sub Ports for Multiple Display.Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.RGB Fusion supports RGB LED Strips in 7-Colors. High-Quality Audio Capacitors and Audio Noise Guard Design. Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers.APP Center Including EasyTune and Cloud Station Utilities
