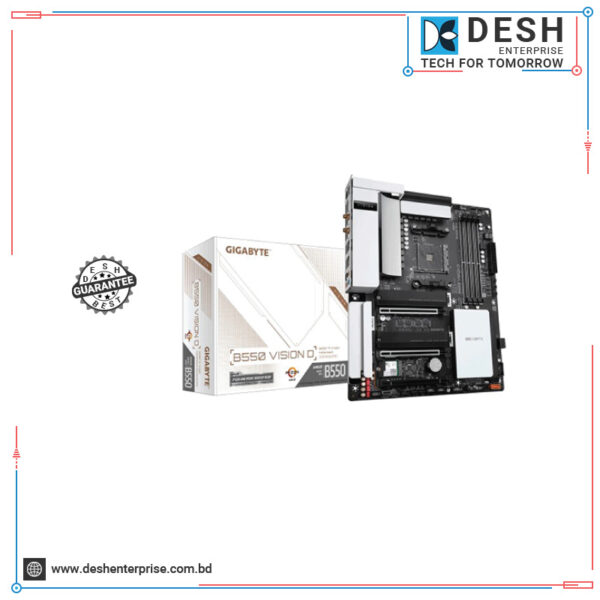

Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard
৳ 27,200.00
Short Features
Model: Gigabyte B550 Vision D
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Ultra-Fast Storage
High-Bandwidth and Low-Latency
More Speed, Pixels, and Possibilities
- Specification
- Description
- Reviews (0)
Specification
Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard
| CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors |
|---|---|
| CHIPSET | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| FORM FACTOR | ATX Form Factor; 30.5cm x 24.4cm |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode |
| M.2 SOCKET | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| SLOTS | 4 x DDR4 memory slots |
| SUPPORTED MEMORY | x3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| MAXIMUM MEMORY | support up to 128GB |
| GRAPHICS | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller: 2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| MAX SHARED MEMORY | 16 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| USB (S) | Integrated into the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+Intel Titan Ridge Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| LAN PORT (S) | 2 x Intel GbE LAN chips (1000 Mbit/100 Mbit). Intel Wi-Fi 6 AX200: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5: Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| SUPPORTED STORAGE | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| AUDIO | Realtek ALC1220-VB codec Support for DTS: X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| INTERNAL I/O PORTS | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| WARRANTY | 03 years |
Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard
৳ 27,200.00
- Model: Gigabyte B550 Vision D
- Supports 3rd Gen AMD Ryzen Processors
- Ultra-Fast Storage
- High-Bandwidth and Low-Latency
- More Speed, Pixels, and Possibilities
Available
Description
Description
Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard
Geared towards creative professionals dealing with heavy workloads, such as video editing and 3D rendering, the Gigabyte B550 VISION D Wi-Fi AM4 ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. Connect to the internet wirelessly with Wi-Fi 6 (802.11ax). Four memory slots support up to 128GB of dual-channel RAM, which can run at up to 5200 MHz (O.C.). The motherboard’s clean, white design is complete with unconventional heatsinks that provide effective cooling. This motherboard features an ATX form factor, which fits in mid- and full-tower cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, Thunderbolt 3, DTS:X Ultra, Smart Fan 5 support, and Gigabyte Q-Flash Plus.
PCIe 4.0 Bandwidth
This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
NVMe PCIe 4.0/3.0 M.2 Connector
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity, delivering up to 64 Gb/s data transfer speed.
Thunderbolt 3
Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect two 4K displays simultaneously. Additionally, you can daisy chain up to six devices to a single Thunderbolt 3 port.
Realtek LAN
Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure highest network priority.
Smart Fan 5
Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid-cooling friendly.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, and graphics card with Gigabyte Q-FLASH PLUS. You don’t have to install components or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file on the USB flash drive, then press the dedicated Q-FLASH PLUS button.
