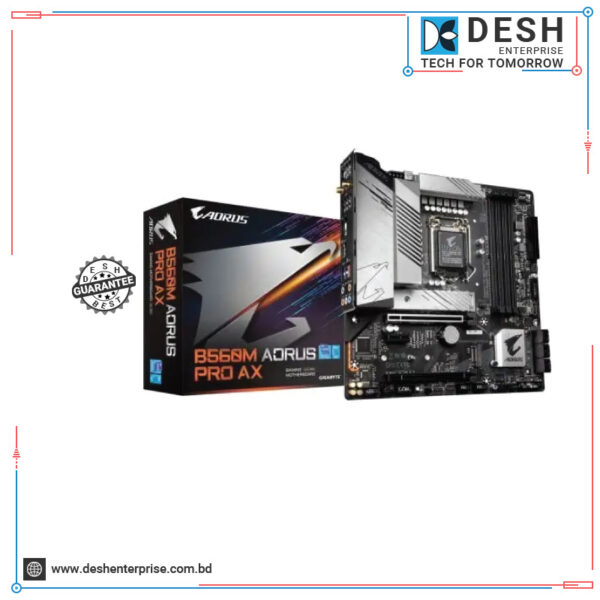

Gigabyte B560M AORUS PRO AX 10th/11th Gen Gaming Motherboard

Description

Gigabyte B560M AORUS PRO AX 10th/11th Gen Gaming Motherboard

Brand – Gigabyte, Model – Gigabyte B560M AORUS PRO AX, Chipset Brand – Intel, Chipset – Intel B560 Express, CPU Sockets – Intel LGA1200, Supported CPU – 11th Gen: Intel Core i9, i7, i5 processors, 10th Gen: Intel Core i9, i7, i5, i3, Pentium, Celeron processors, Generation – 10th/11th Gen, Memory Type – DDR4, Memory MHz – 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz, Memory Channel – Dual, Memory Slot – 4, Multi-GPU Support – AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, PCI Express Slot – 2 x PCI Express x16, 1 x PCI Express x1, Storage Interface – 6Gb/s, M.2 Slot – 2 M.2 (1 x M.2 type 2260/2280 PCIe 4.0 x4/x2 SSD), (1 x M.2 type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD)), LAN Chipset – Intel 2.5GbE LAN, LAN Speed (Mbps) – 10/100 Mbps, Audio Chipset – Realtek Audio codec, Audio Channel – 2/4/5.1/7.1-channel, Wi-Fi – Yes, Wi-Fi Technology – Wi-Fi 6 AX200 a, b, g, n, ac, ax, Bluetooth – Bluetooth 5.1, USB Port – 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen Type-C (2×2), 1 x USB 3.2 Gen 2 Type-A, 8 x USB 2.0, HDMI Port – 1, DisplayPort (DP) – 1, SATA Port – 6, BIOS Type – 1 x 256 Mbit flash, BIOS Model – AMI UEFI BIOS, BIOS Version – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Thunderbolt – 2, TPM Port – Yes, RGB Support – Yes, RGB Sync – RGB Fusion 2.0, RGB Connector – 2 x RGB LED strip headers, Form Factor – ATX, Supported Operating System – Windows 10, Special Features – B560M AORUS uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. B560M AORUS PRO AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish., Others – 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors, 1 x RJ-45 port, 6 x audio jacks, Warranty – 3 Year
