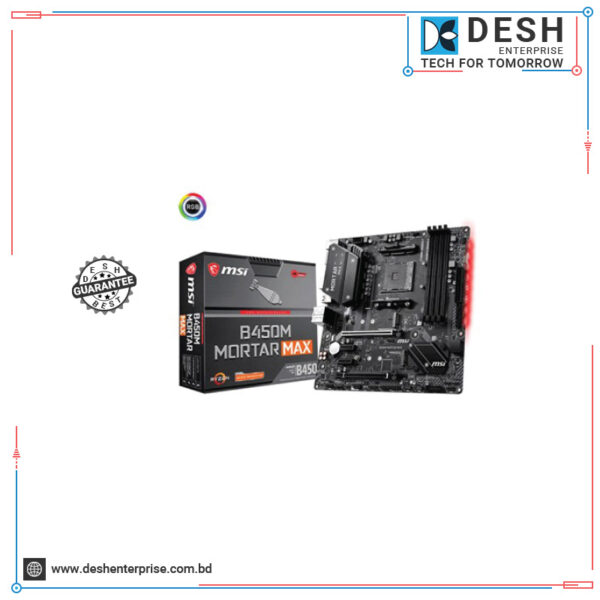

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
৳ 9,500.00
Short Features
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Supports DDR4, up to 4133(OC) MHz
Extended Heatsink Design
Lightning Fast Game experience
- Specification
- Description
- Reviews (0)
Specification
MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
Basic Information | |
Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
Chipset | AMD B450 Chipset |
BIOS | Flash BIOS Button |
Form Factor | M-ATX Form Factor |
Audio | Realtek ALC892 Code: – 7.1-Channel High Definition Audio – Supports S/PDIF output |
Expansion Slots | |
PCI | – 1 x PCIe 3.0 x16 slot (PCI_E1) – Supports x16 with 1st, 2nd and 3rd Gen AMD Ryzen processors – Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors – Supports x4 with AMD Athlon with Radeon Vega Graphics Processors – 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 – 2 x PCIe 2.0 x1 slots2 |
M.2 Socket | AMD B450 Chipset: – 1 x M.2 slots (M2_2, Key M)1 – Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD CPU: – 1x M.2 slot (M2_1, Key M)1 – Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
Memory | |
Type | DDR4 |
Slots | – 1 x PCIe 3.0 x16 slot (PCI_E1) – Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors – Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors – Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors – 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) – 2 x PCIe 2.0 x1 slots |
Supported Memory | 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) non-ECC UDIMM memory ECC UDIMM memory (non-ECC mode) |
Maximum Mamory | – support up to 64GB |
Graphics | |
Graphics | Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
Max Shared Memory | Maximum shared memory of 2048 MB |
Connector & Ports | |
HDMI | 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz |
Display Port (s) | 1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz |
USB (s) | AMD B450 Chipset: – 1 x USB 3.2 Gen2 Type-C port on the back panel – 1 x USB 3.2 Gen2 Type-A port on the back panel – 2 x USB 3.2 Gen1 ports available through the internal USB 3.2 Gen1 connector – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: – 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
LAN Port (s) | 1 x Realtek RTL8111H-CG Gigabit LAN controller |
Supported Storage | AMD B450 Chipset: – 4 x SATA 6Gb/s ports1 – 1 x M.2 slots (M2_2, Key M)1 – Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: – 1x M.2 slot (M2_1, Key M)1 – Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
Audio | – 7.1-Channel High Definition Audio – Supports S/PDIF output |
Internal I/O Ports | 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
DVI-D (s) | Yes |
Warranty Information | |
Manufacturing Warranty | 03 Years Warranty |
Description
Description
MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard is Supports 1st, 2nd, and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and Supports DDR4 Memory, up to 4133(OC) MHz. This Military Style Gaming Motherboard comes with an Extended Heatsink Design where MSI extended PWM and enhanced circuit design ensure even high-end processors run at full speed. This motherboard also has Lightning Fast Game experience with 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology. The MSI B450M MORTAR MAX motherboard also has Core Boost With a premium layout and fully digital power design to support more cores and provide better performance. DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability. MULTI-GPU with PCI-E STEEL ARMOR slot that supports 2-Way AMD Crossfire. With this Flash BIOS Button, you can simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card.
This Military Style Gaming Mother comes with Flash BIOS Button, PS/2 Combo Port, USB 3.2 Gen1, USB 3.2 Gen2 (Type A+C), Golden audio jacks with S/PDIF, Arsenal Sticker Area which is Free for customization with personal style, Extended Heatsinks Design which is Leading heatsink design and extended for maximum cooling and performance, Heavy plated gaming heatsinks which Military style designed for maximum cooling, DDR4 Boost which can Optimized traces and isolated memory circuitry, Turbo M.2 which Delivering speeds up to 32 Gb/s using Gen3 x4, PCI-E Steel Armor that protecting VGA cards against bending and Audio Boost that optimized gaming audio using the best coupon. This exclusive gaming motherboard is designed with tons of smart features for convenient setup and usage, such as pin-header keep-out zone, friendly SATA & USB location, and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. This MSI motherboard feature with tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are disposal to push your system to new heights and satisfy even the most demanding tweaker.
