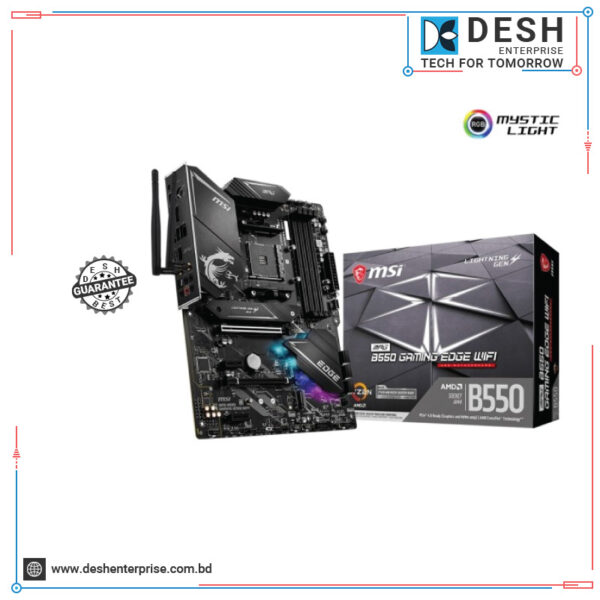

MSI MPG B550 Gaming Edge WiFi AM4 ATX Motherboard
৳ 19,500.00
Short Features
Model: MSI MPG B550 Gaming Edge
Supports 3rd Gen and Future Generation AMD Ryzen Processor
Premium Thermal Solution
Lightning Fast Game experience
Supports up to 5100+(OC) MHz
- Specification
- Description
- Reviews (0)
Specification
MSI MPG B550 Gaming Edge WiFi AM4 ATX Motherboard
| SPECIFICATIONS | ||
| Supported CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update | |
| Chipset | AMD B550 Chipset | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices |
|
| Memory Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Mamory | 128GB | |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz Supports 2-Way AMD CrossFire Technology |
|
| Max Shared Memory | 16 GB | |
| HDMI | 1x HDMI maximum resolution of 4096×2160 @24Hz | |
| Display Port (s) | 1x DisplayPort maximum resolution of 4096×2160 @60Hz | |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices |
|
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |
|
| Manufacturing Warranty | 03 Years Warranty | |
Description
Description
MSI MPG B550 Gaming Edge WiFi AM4 ATX Motherboard
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end CPU to run at full speed with MSI motherboards. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
